Surface water management remains one of the most critical considerations in modern highways and civil engineering projects. Traditional drainage systems often require separate kerbs and channels, increasing installation time, labour costs, and potential points of failure. The aco kerbdrain system addresses these challenges by combining both functions into a single, monolithic unit that streamlines installation whilst delivering superior drainage performance across highways, commercial developments, and residential applications.
Understanding ACO KerbDrain Technology
The aco kerbdrain represents a significant evolution in surface water management for highways and infrastructure projects. Unlike conventional systems that require separate kerb stones and drainage channels, this innovative solution integrates both elements into one pre-cast concrete unit.
Design and Construction Features

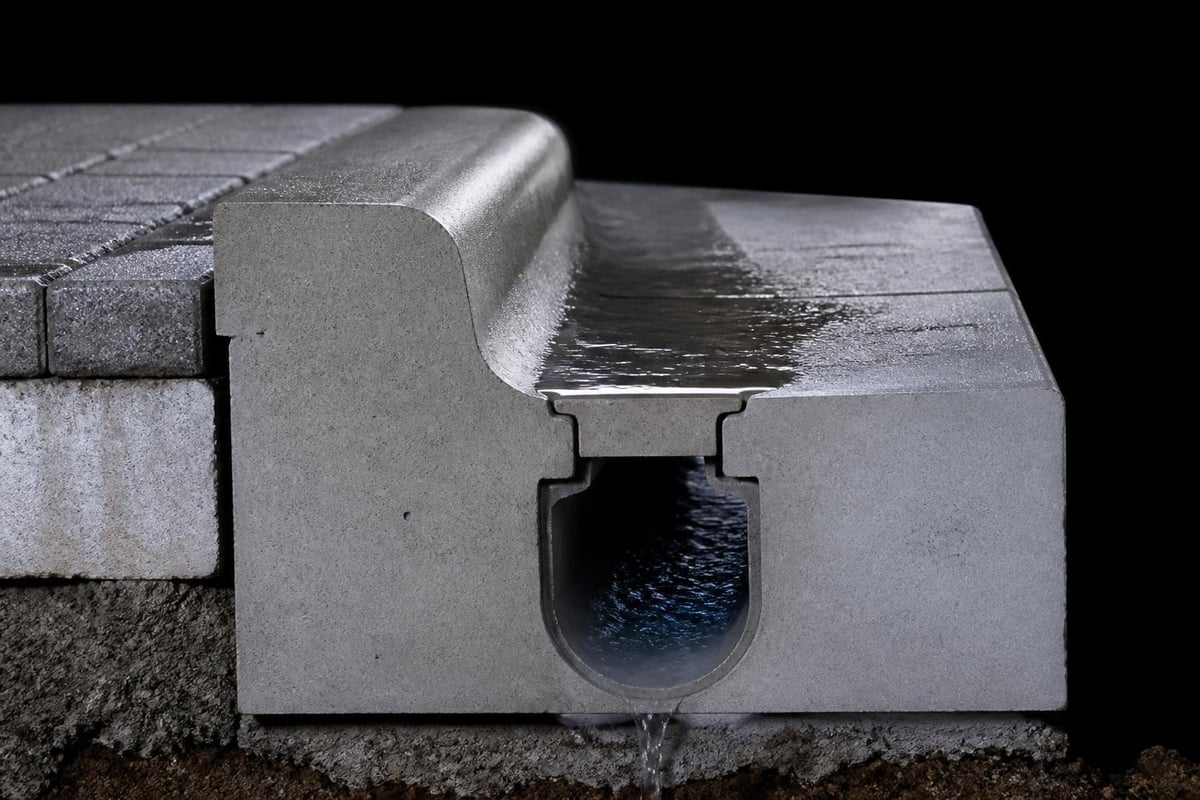

The monolithic structure of the aco kerbdrain delivers several distinct advantages over traditional approaches. Manufactured from high-strength concrete, each unit features an integrated channel that runs along its length, capturing surface water at the point where it naturally accumulates-the junction between road surface and kerb line.
Key technical specifications include:
- Pre-cast concrete construction ensuring consistent quality
- Integral drainage channel with continuous capacity
- Load class options ranging from pedestrian areas to heavy commercial traffic
- Standard unit lengths that facilitate rapid installation
- Compatible grating systems for various aesthetic and functional requirements
The design features of the KerbDrain system include hydraulic optimization, ensuring efficient water collection even during heavy rainfall events common in the UK climate.
Applications in Commercial and Highway Projects
Commercial developments and highway infrastructure projects present unique drainage challenges that the aco kerbdrain addresses effectively. From large-scale road construction to car park developments, this system adapts to various specifications whilst maintaining consistent performance standards.
Highway and Road Construction
Highway projects demand drainage solutions that withstand significant loading whilst managing substantial water volumes. The aco kerbdrain excels in these environments due to its robust construction and proven load-bearing capacity.
For highway surfacing projects, the system offers particular advantages:
- Reduced installation time compared to separate kerb and drainage systems
- Continuous drainage capacity along the entire road length
- Minimal maintenance requirements due to accessible grating systems
- Enhanced safety through efficient water removal from road surfaces
- Long-term durability in high-traffic environments
The applications of ACO KerbDrain in stormwater management demonstrate its effectiveness in modern urban planning, particularly for projects requiring coordinated surface water control.
Commercial Development Integration
Drive-through facilities, retail car parks, and commercial premises require drainage systems that balance functionality with aesthetic considerations. The aco kerbdrain provides both, offering clean lines and effective water management without compromising visual appeal.
| Application Type | Key Benefits | Typical Load Class |
|---|---|---|
| Shopping Centre Car Parks | High capacity, easy maintenance | D400 – F900 |
| Drive-Through Restaurants | Quick installation, minimal disruption | C250 – D400 |
| Industrial Estates | Heavy load resistance, durability | E600 – F900 |
| Residential Developments | Aesthetic integration, cost efficiency | A15 – C250 |
Installation Advantages for Civil Engineering Contractors
Civil engineering contractors prioritise systems that reduce programme time whilst maintaining quality standards. The aco kerbdrain delivers on both counts, offering installation efficiencies that translate directly to project cost savings.
The lightweight design compared to traditional kerb and channel combinations means reduced lifting equipment requirements. Installation teams can position units more quickly, accelerating programme delivery without compromising safety standards.

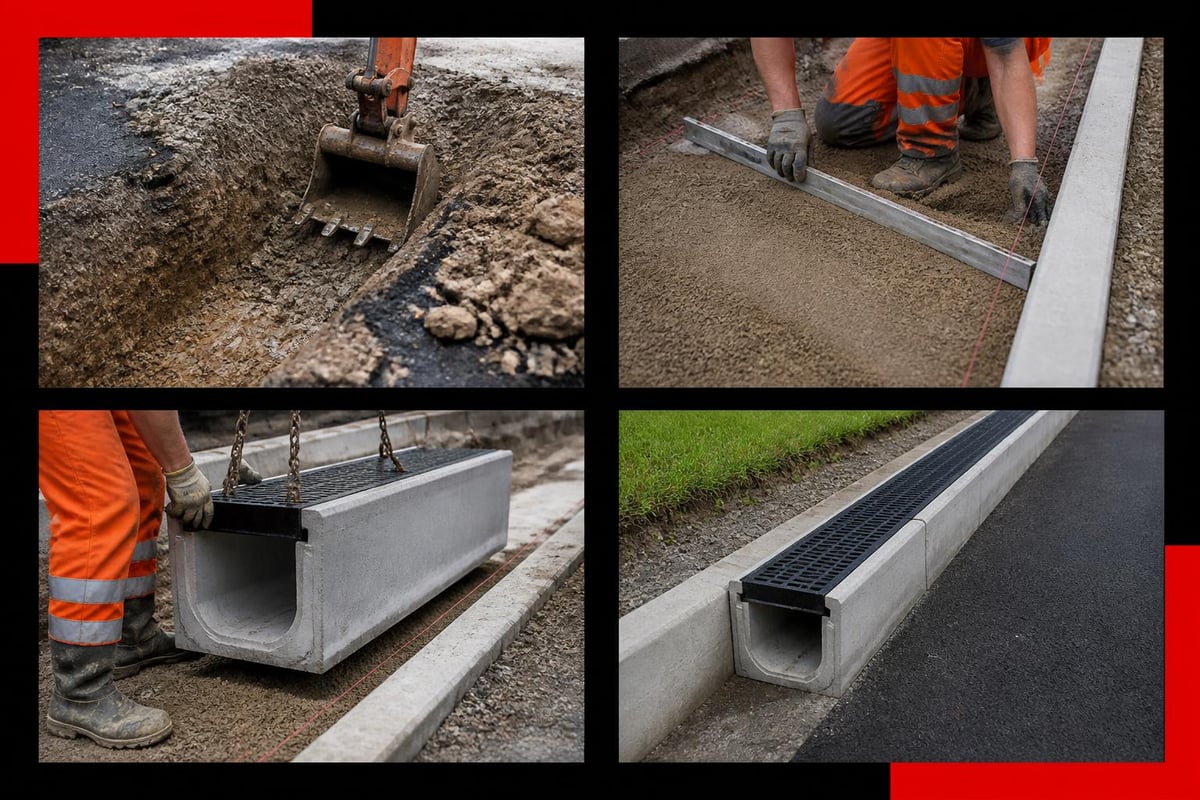

Installation Process and Methodology
Professional installation ensures optimal performance throughout the system's service life. The process follows established civil engineering principles whilst taking advantage of the aco kerbdrain's integrated design.
Preparation stages include:
- Excavation to required depth according to load class specifications
- Concrete bedding preparation ensuring stable support
- Accurate level setting for proper hydraulic gradient
- Unit positioning with tight joints between sections
The dual functionality of ACO KerbDrain as both curb and drainage channel simplifies the installation sequence, eliminating the need for separate trades to install kerbs and drainage separately.
Connection to Existing Drainage Infrastructure
Integration with existing surface water systems requires careful planning. The aco kerbdrain connects to standard drainage pipes through outlet points positioned at regular intervals or low points along the channel run.
Contractors can specify outlet spacing based on hydraulic calculations, ensuring the system manages design rainfall events effectively. This flexibility allows adaptation to site-specific conditions whilst maintaining system integrity.
Technical Performance and Load Classifications
Understanding load classifications proves essential when specifying the aco kerbdrain for different applications. European standards define load classes from A15 (pedestrian areas) through to F900 (airports and industrial facilities), ensuring appropriate specification for each project type.
For commercial services projects, selecting the correct load class prevents premature failure whilst avoiding over-specification that increases costs unnecessarily.
Hydraulic Capacity and Flow Rates
The integrated channel design of the aco kerbdrain provides continuous hydraulic capacity along its length. Channel depth and width vary according to specification, allowing designers to match capacity to anticipated flow rates.
Flow capacity depends on several factors:
- Channel cross-sectional area
- Longitudinal gradient of installation
- Grating open area percentage
- Anticipated rainfall intensity for the location
The technical specifications of ACO KerbDrain detail hydraulic performance across various configurations, enabling accurate system sizing during the design phase.
Maintenance and Long-Term Performance

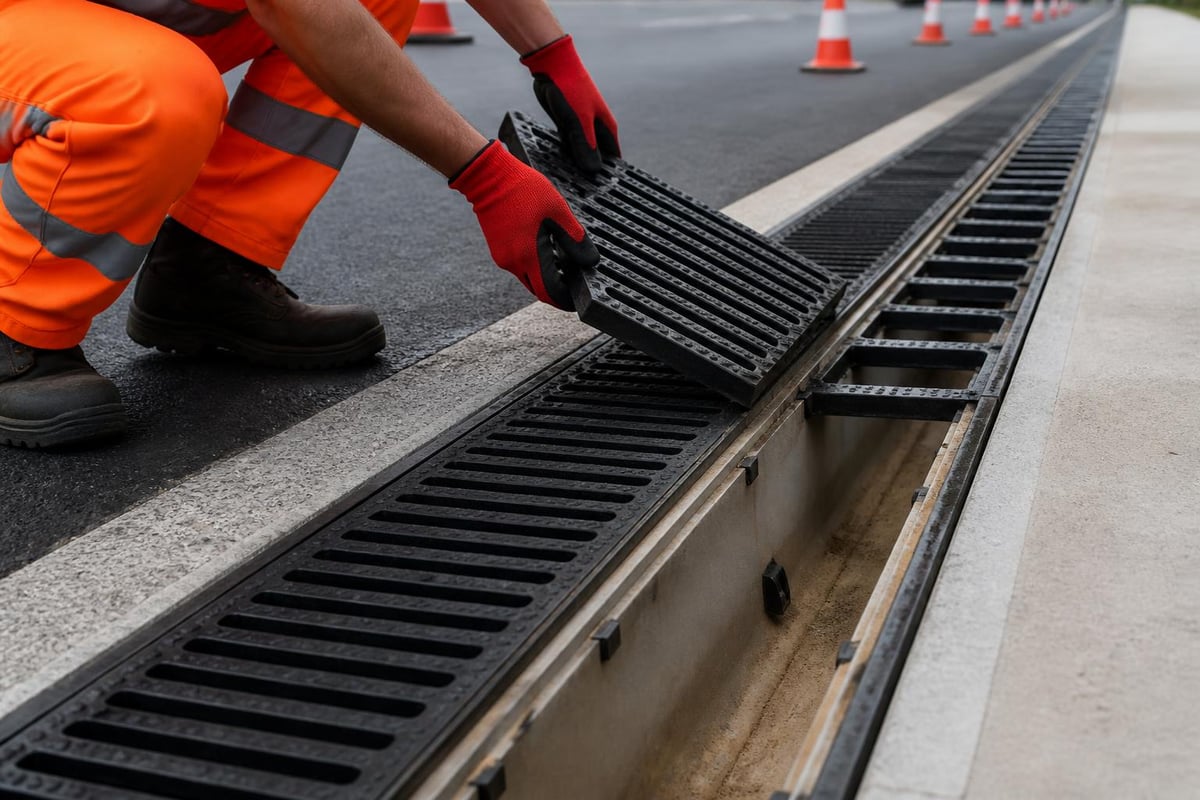

Maintenance accessibility significantly impacts whole-life costs for drainage systems. The aco kerbdrain features removable gratings that provide full access to the channel for routine cleaning and inspection without requiring excavation or system dismantling.
Routine Maintenance Procedures
Regular maintenance ensures optimal performance throughout the system's service life. Simple procedures keep the system functioning effectively:
- Quarterly visual inspections to identify blockages or damage
- Annual deep cleaning using jet washing or vacuum systems
- Grating condition checks ensuring secure seating and structural integrity
- Outlet point verification confirming free discharge to connecting pipework
The monolithic construction minimises joint failure risks compared to traditional systems with multiple connection points. This inherent reliability reduces long-term maintenance requirements and associated costs.
Winter Performance Considerations
UK winters present particular challenges for surface drainage systems. The aco kerbdrain's robust construction withstands freeze-thaw cycles without structural degradation, whilst the accessible design allows snow and ice removal without damaging the system.
| Maintenance Task | Frequency | Estimated Time | Equipment Required |
|---|---|---|---|
| Visual Inspection | Quarterly | 15 mins per 100m | None |
| Grating Removal & Cleaning | Annually | 2 hours per 100m | Lifting keys, jet washer |
| Outlet Verification | Annually | 30 mins per outlet | CCTV or inspection mirror |
| Silt Removal | As required | 1 hour per 100m | Vacuum or manual extraction |
Cost Benefits and Project Economics
Whole-life costing demonstrates the economic advantages of the aco kerbdrain compared to traditional separate systems. Initial material costs may appear higher, but reduced installation time, lower labour requirements, and minimal maintenance expenses deliver significant savings over the system's operational life.
For contractors undertaking groundworks projects, the ability to complete drainage and kerbing in a single operation reduces programme duration. This efficiency allows earlier completion of subsequent trades, accelerating overall project delivery.
Material and Labour Cost Analysis
The cost advantages of ACO KerbDrain stem from its lightweight design and simplified installation process. Fewer operatives can install more linear metres per day compared to traditional systems requiring separate kerb laying and channel installation teams.
Typical cost benefits include:
- 30-40% reduction in installation time
- Lower plant hire costs due to reduced programme duration
- Decreased labour requirements per linear metre
- Minimal remedial work due to integrated construction
- Reduced whole-life costs through simplified maintenance
Environmental and Sustainable Drainage Benefits
Sustainable urban drainage principles increasingly influence specification decisions. The aco kerbdrain contributes to sustainable drainage strategies by efficiently collecting and conveying surface water to treatment systems or infiltration zones.
The environmental benefits of ACO KerbDrain align with modern requirements for sustainable urban development, supporting green infrastructure initiatives whilst maintaining practical functionality.
Integration with SuDS Schemes
Sustainable Drainage Systems (SuDS) require effective surface water collection before treatment or infiltration. The aco kerbdrain serves as the primary collection element, capturing runoff and directing it to downstream SuDS components such as:
- Attenuation tanks for flow control
- Filter strips for water quality treatment
- Infiltration basins for groundwater recharge
- Wetland systems for ecological enhancement
The versatility of ACO KerbDrain makes it suitable for roadways, roundabouts, and car parks, ensuring comprehensive surface water management across varied development types.
Specification Considerations for Different Project Types
Selecting appropriate aco kerbdrain specifications requires understanding project-specific requirements. Load classifications, hydraulic capacity, aesthetic preferences, and existing infrastructure connections all influence specification decisions.
Residential Developments
Private driveways and residential streets typically require lower load classifications whilst maintaining adequate hydraulic capacity for domestic rainfall runoff. The system's clean appearance suits residential contexts, providing effective drainage without industrial aesthetics.
For residential projects undertaken by experienced contractors, the aco kerbdrain offers homeowners peace of mind through proven performance and minimal maintenance requirements.
Highway Infrastructure
Major highway projects demand the highest load classifications combined with substantial hydraulic capacity. The aco kerbdrain's availability in heavy-duty specifications ensures suitability for motorways, dual carriageways, and heavily trafficked urban roads.
Integration with highway drainage design standards ensures compliance with relevant specifications whilst delivering the practical benefits of integrated construction. The ACO KerbDrain overview provides detailed information on applications in modern surface water management for highways infrastructure.
Effective surface water management forms the foundation of successful highways and civil engineering projects, with the aco kerbdrain offering a proven solution that combines kerbing and drainage functions efficiently. Whether you're planning a commercial development, highway construction, or residential project requiring professional drainage solutions, JRG Civils delivers the expertise and attention to detail necessary for successful implementation. Contact our team to discuss your project requirements and discover how our civil engineering excellence can benefit your next development.
